Specwright Desktop

Specwright Desktop is an Electron app that wraps the same 10-phase pipeline with a visual, three-panel interface. It streams agent output token-by-token, shows phase-by-phase progress, and provides a GUI for auth configuration and environment variables.

Download

Available for Mac (Apple Silicon + Intel) and Windows. Download the latest release from GitHub Releases.

macOS: Open the DMG → drag Specwright to Applications → right-click → Open on first launch (app is unsigned). Windows: Run the installer — the app launches automatically when done.

First launch — project setup

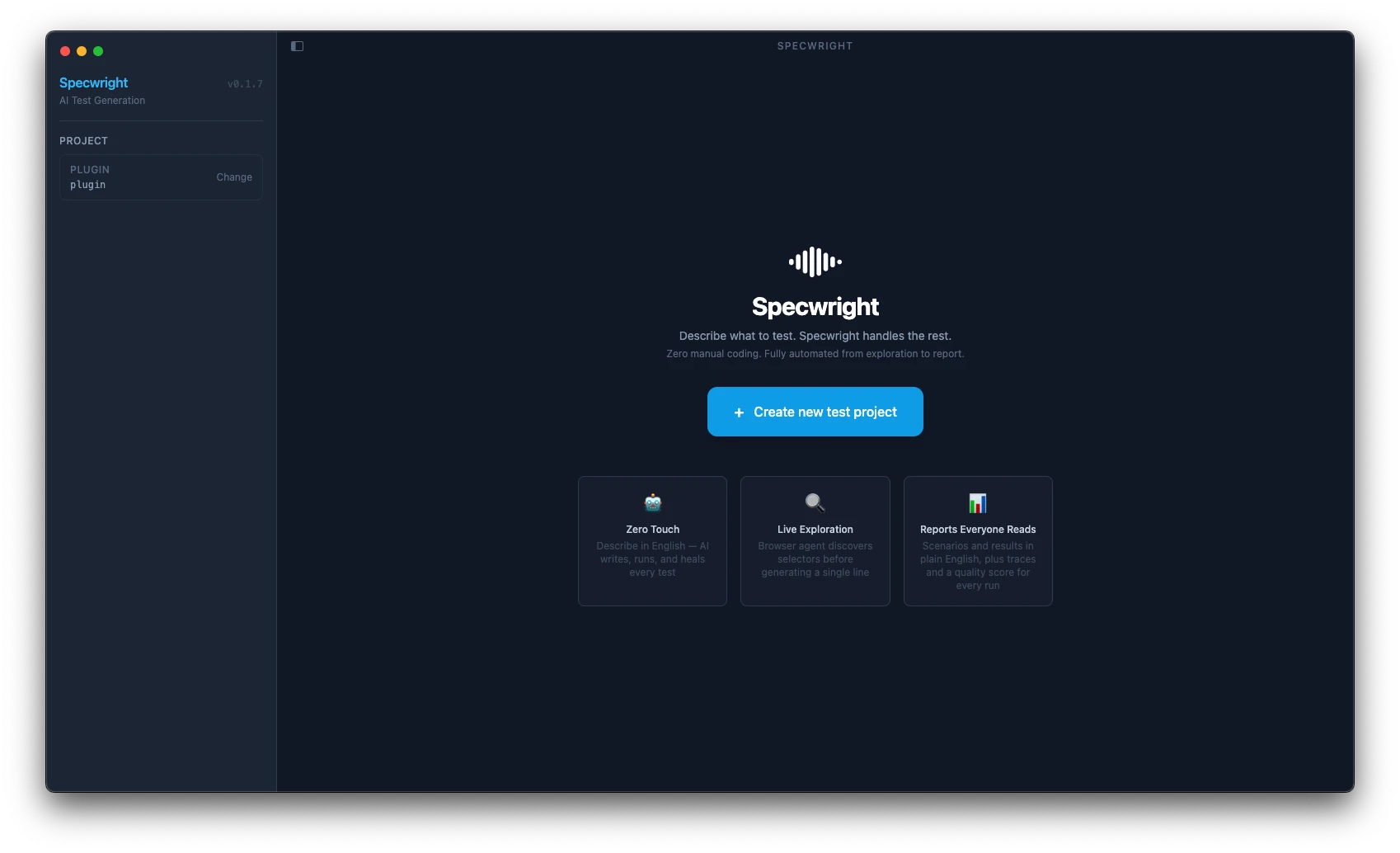

When you open Specwright Desktop for the first time, you'll see the welcome screen.

1. Click Open Project and select your project folder
2. The app detects whether @specwright/plugin is installed
3. If not installed, click Bootstrap Plugin — the app runs npx @specwright/plugin init automatically
4. Once detected, the Left Panel shows your plugin version and overlay (if any)

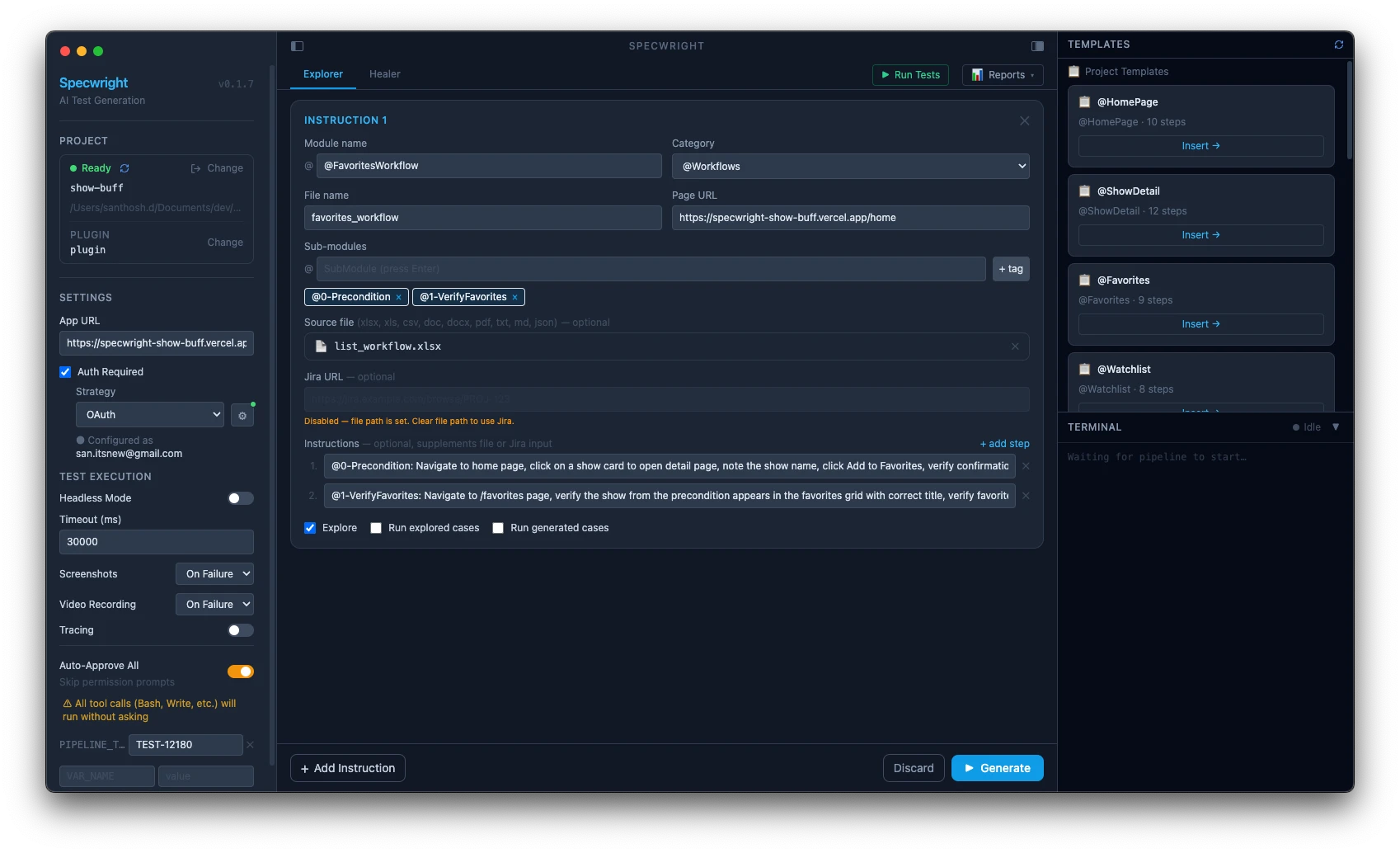

Three-panel interface

┌────────────────┬──────────────────────────┬────────────────┐
│  Left Panel    │     Center Panel          │  Right Panel   │
│  ─────────     │     ─────────────         │  ──────────    │
│  Plugin info   │  Live agent output        │  Phase status  │
│  Auth config   │  Token-by-token stream    │  Run controls  │
│  Env vars      │  Phase markers            │  Quality score │
│  Run button    │  Phase 6 approval UI      │                │
└────────────────┴──────────────────────────┴────────────────┘

Left Panel

The Left Panel manages your project configuration.

Plugin section

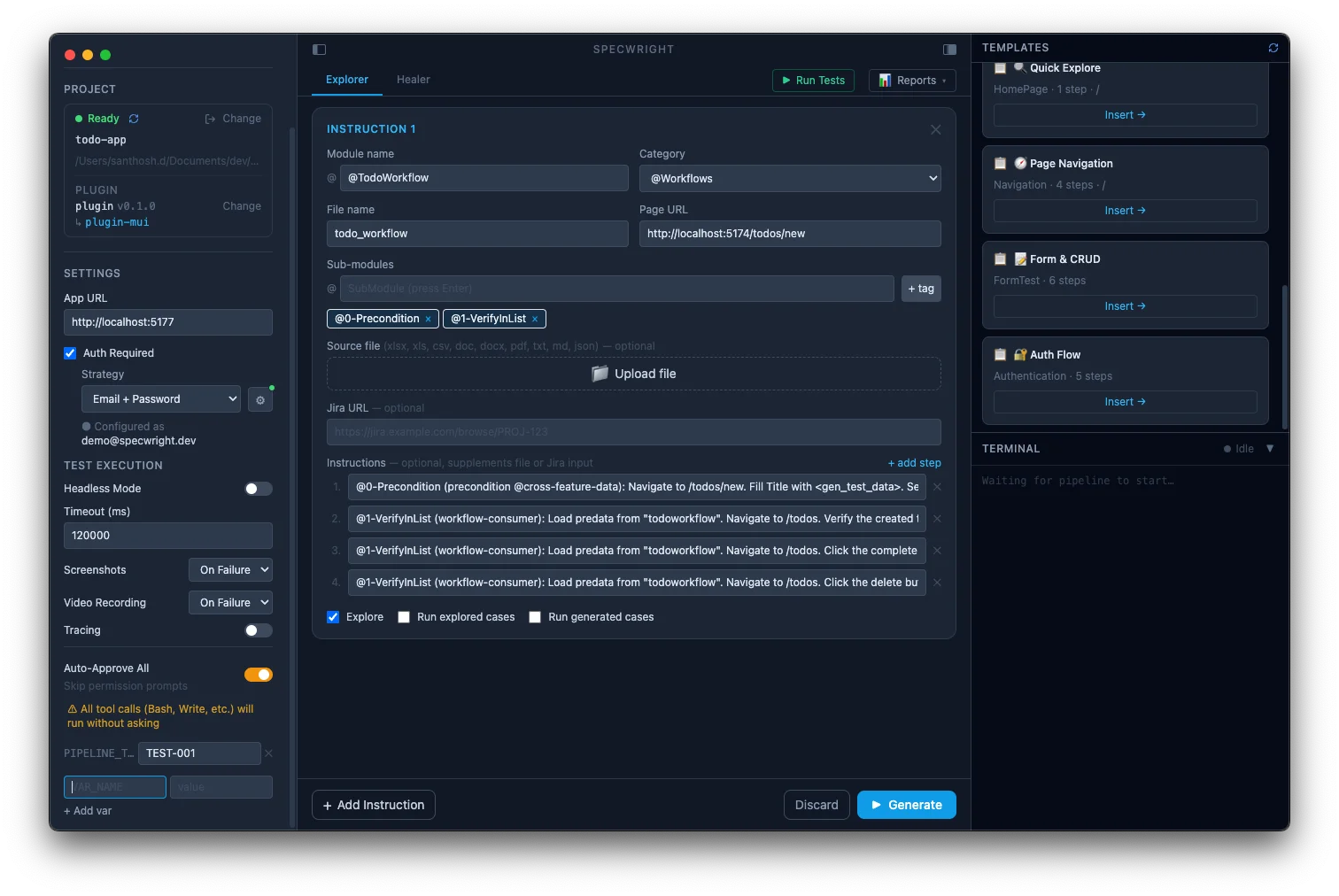

Shows the detected plugin name and version. If an overlay plugin is installed, it appears below the base plugin:

plugin  v0.1.0
↳ plugin-mui

Environment variables

The env var editor lists all fields from e2e-tests/.env.testing. Changes are saved directly to the file.

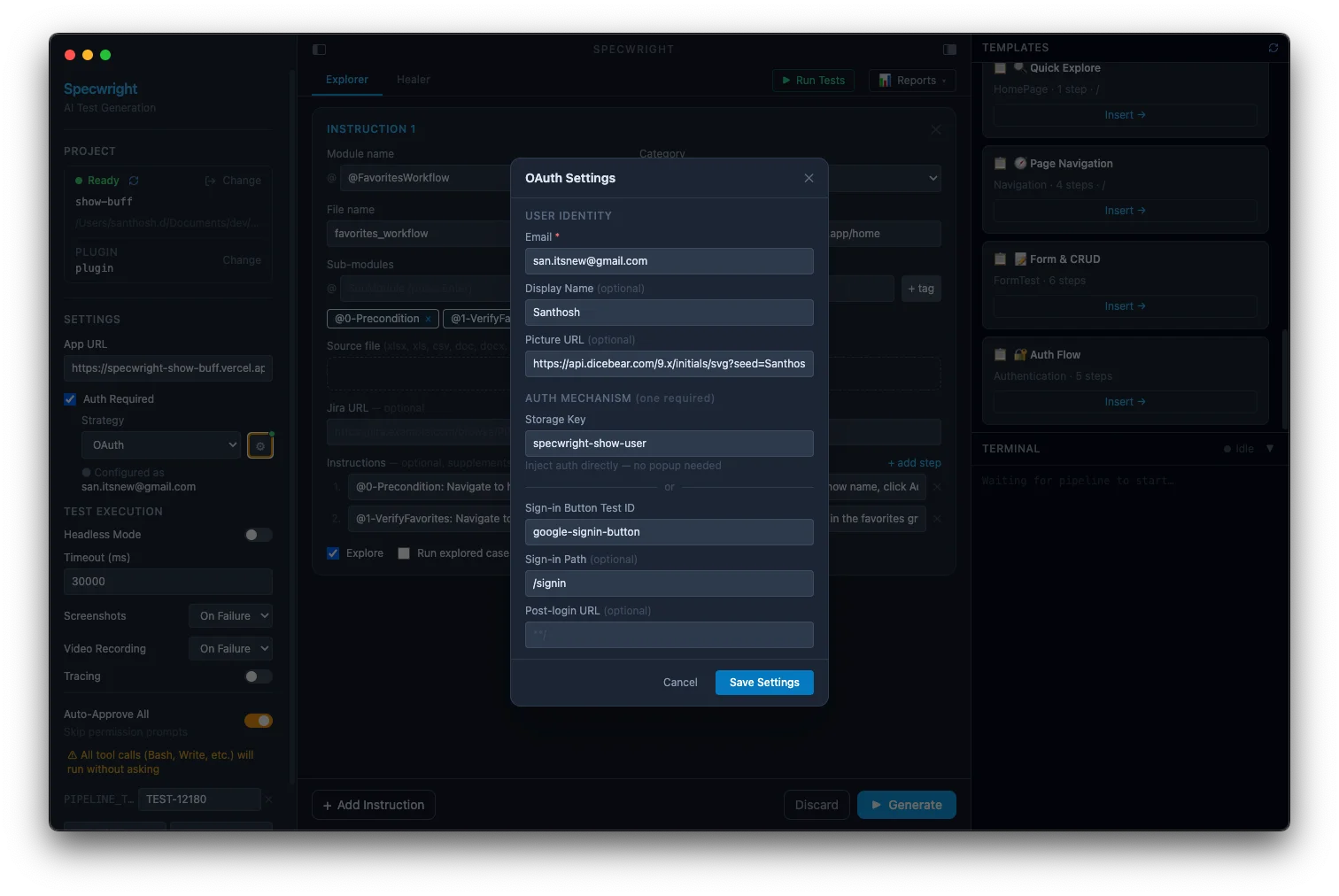

Auth configuration

Click the Settings (gear) icon next to the plugin section to open the Auth Configuration modal.

OAuth strategy:

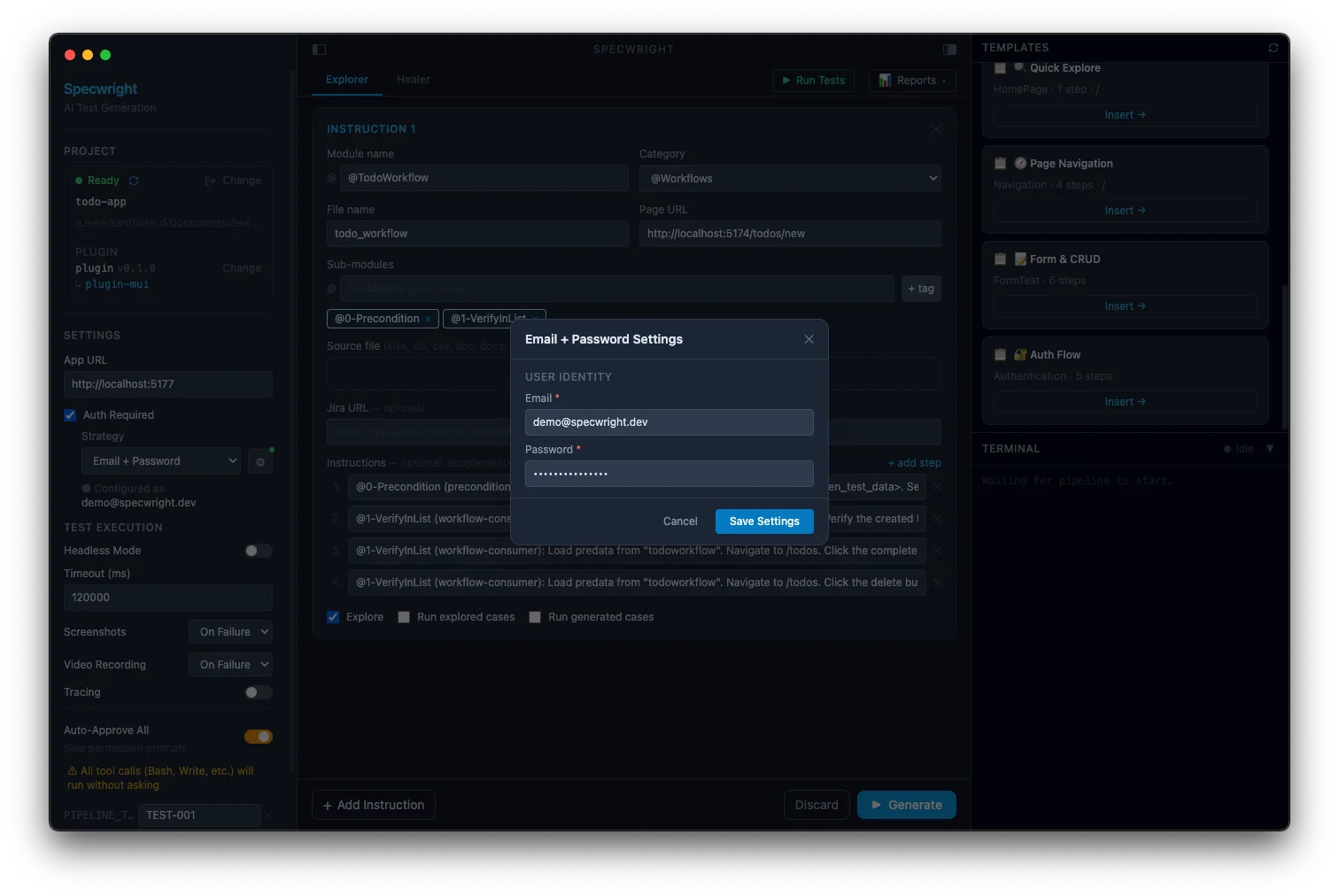

Email + Password strategy:

All values are saved to e2e-tests/.env.testing — the same file the CLI uses.

Run button

Click Run Pipeline to start the full /e2e-automate pipeline. The button is disabled while a run is in progress.

Center Panel

The Center Panel streams live agent output as the pipeline runs.

What you see

• Phase markers — ### Phase 1: Input Processing, ### Phase 4: Exploration, etc.
• Agent output — tokens stream in as the agent produces them
• Tool use — browser navigation, file reads, and writes are shown inline
• Active tool indicator — a spinner shows when a tool is executing

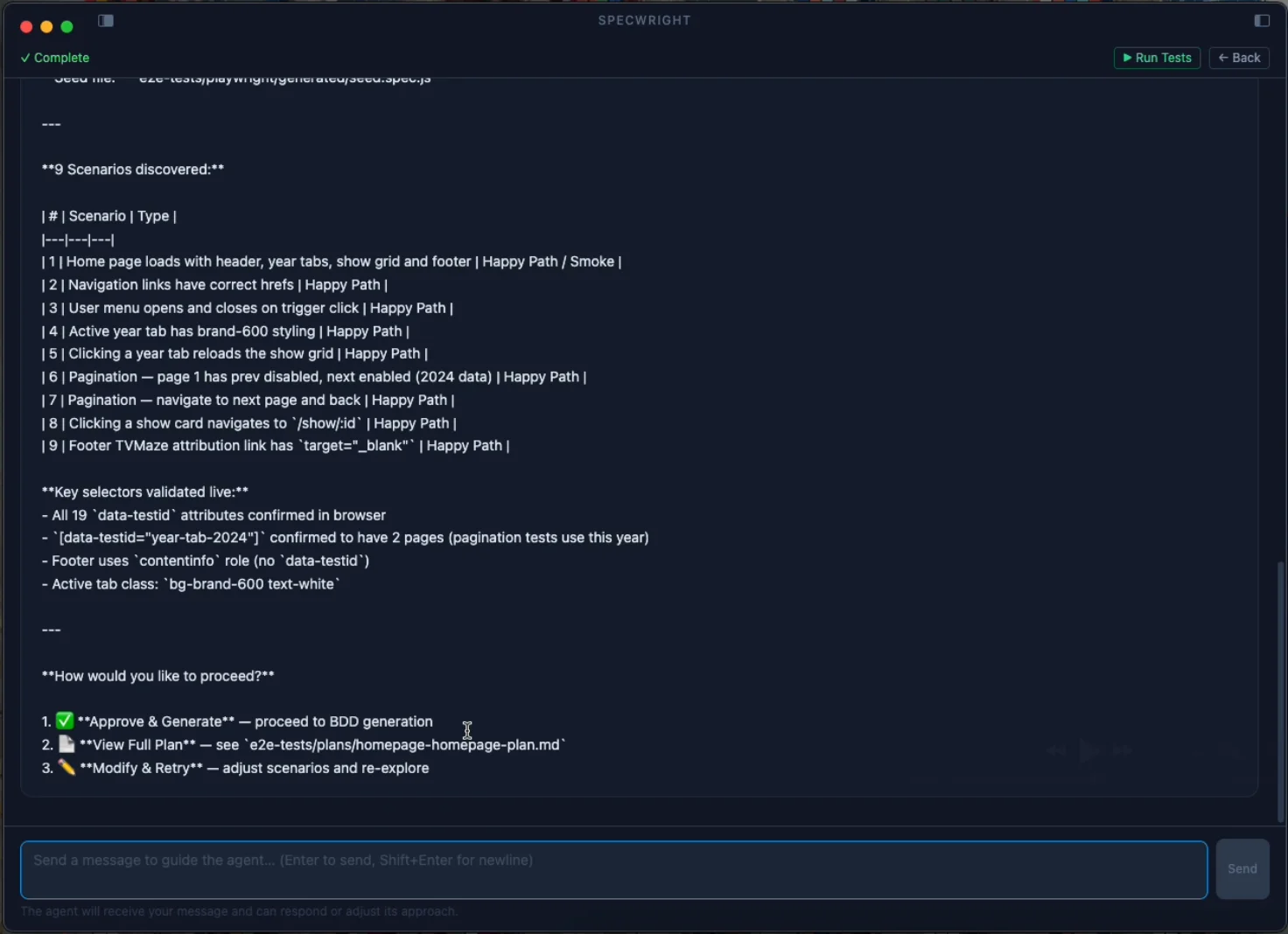

Phase 6 — approval

When the pipeline reaches Phase 6, the Center Panel shows the generated test plan and the run button changes to an Approve / Reject decision.

• Approve — continues to Phase 7 (BDD generation)
• Reject — stops the pipeline; you can edit instructions.js and re-run

Stopping a run

Click Stop in the Right Panel to halt the pipeline mid-run. The current agent step will finish before stopping.

Right Panel

The Right Panel shows pipeline state and controls.

Phase tracker

Each of the 10 phases shows one of:

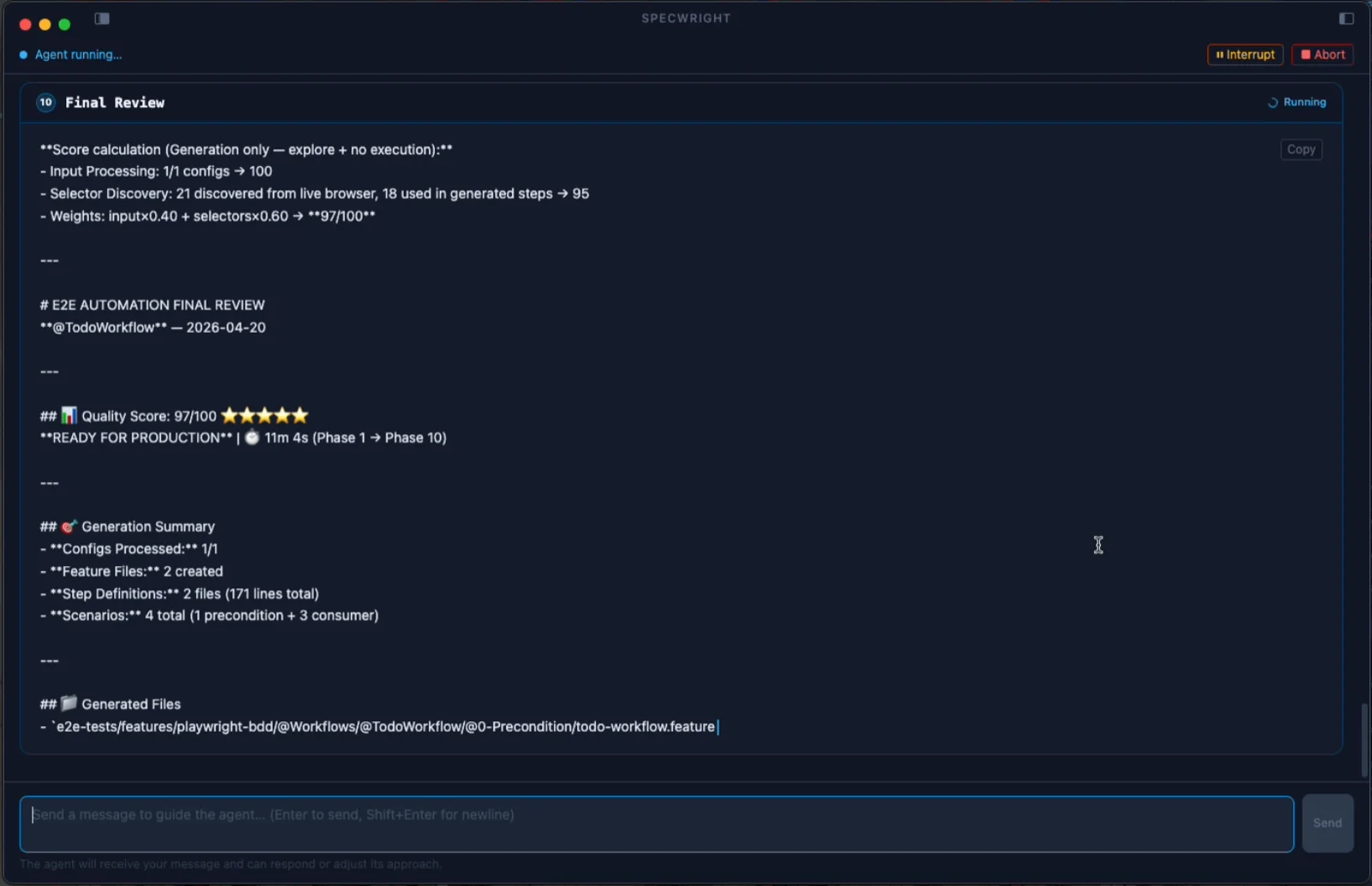

Quality score

After Phase 10 completes, a quality score (0–100) appears in the Right Panel. The score reflects:

• Scenario coverage vs instructions
• Selector quality
• Data table completeness
• Shared step reuse

Run / Stop controls

• Run Pipeline — starts /e2e-automate with the current instructions.js
• Stop — halts the current run
• Clear — clears the Center Panel output

Refreshing the project

If you edit e2e-tests/.env.testing outside the app (e.g., in a terminal), click the Refresh button (↻) in the Left Panel to reload the env vars without restarting.

vs. CLI

Both interfaces run the identical pipeline. Choose based on preference.
